Manually Operated Overhead Crane

Manually Operated Overhead Crane

Lifting Capacity: 1-10t

Span: 5-14m

Lifting height: 3-10m

Working Class: A1~A3

Product Overview

Manually Operated Overhead Crane is characterized by more reasonable structure and higher strength steel as a whole, the main beam is made by I-beam or box frame steel beam, the end carriages are made by C-section beam.

The all motions of this crane are drive by hand, can be used as installation, maintenance equipment and lifting heavy objects, especially for non-power locations.

Manually Operated Overhead Crane is a general-purpose crane, used for the small amount of handling and does not pay attention to efficiency and speed without power warehouse, workshop or maintenance equipment.

Product Specifications

Capacity
 T 1
Span m 5 9 12 14
Liftingheight m 3-10
Trolleytravellingspeed m/min 5.3
Cranetravellingspeed m/min 5.0
TotalWeight Kg 650 850 1090 1310
Max.Wheelload KN 0.65 0.73 0.81 0.86
Maindimension(mm) Span(m) 5 9 12 14
Railtoptocranetop H 520
Railtoptohookcenter H4 550 580 610 650
Cranebasedistance W 1200 1600
Cranewidth B 1800 2200
Hookleftlimitation S1 360 380 395 420
Hookrightlimitation S2
Capacity T 3
Span m 5 9 12 14
Lifting height m 3-10
Trolley travelling speed m/min 4.7
Crane travelling speed m/min 5.0
Total Weight Kg 810 1200 1460 1800
Max. Wheel load KN 1.61 1.79 1.87 1.97
Main dimension (mm) Span(m) 5 9 12 14
Rail top to crane top H 520
Rail top to hook center H4 900 940 980 1030
Crane base distance W 1200 1600
Crane width B 1800 2200
Hook left limitation S1 460 485 510 540
Hook right limitation S2
Capacity T 5
Span m 5 9 12 14
Lifting height m 3-10
Trolley travelling speed m/min 4.7
Crane travelling speed m/min 5.0
Total Weight Kg 960 1360 1730 2210
Max. Wheel load KN 2.5 2.75 2.86 3.01
Main dimension (mm) Span(m) 5 9 12 14
Rail top to crane top H 600
Rail top to hook center H4 1210 1250 1300 1360
Crane base distance W 1200 1600
Crane width B 1800 2200
Hook left limitation S1 520 560 585 625
Hook right limitation S2
Capacity T 10
Span m 5 9 12 14
Lifting height m 3-10
Trolley travelling speed m/min 4.2
Crane travelling speed m/min 5.0
Total Weight Kg 1420 1870 2250 2830
Max. Wheel load KN 4.89 5.29 5.44 5.65
Main dimension (mm) Span(m) 5 9 12 14
Rail top to crane top H 720
Rail top to hook center H4 1390 1440 1490 1550
Crane base distance W 1800
Crane width B 2600
Hook left limitation S1 555 585 615 650
Hook right limitation S2

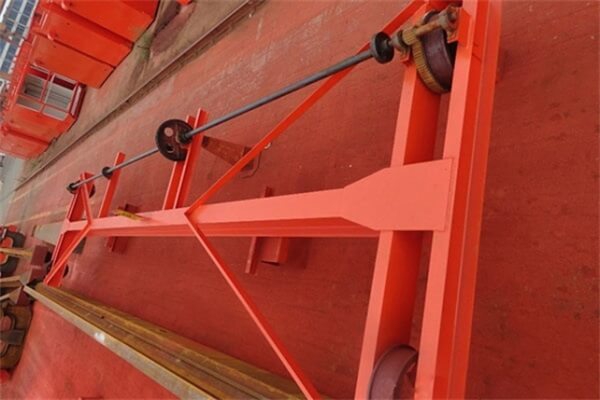

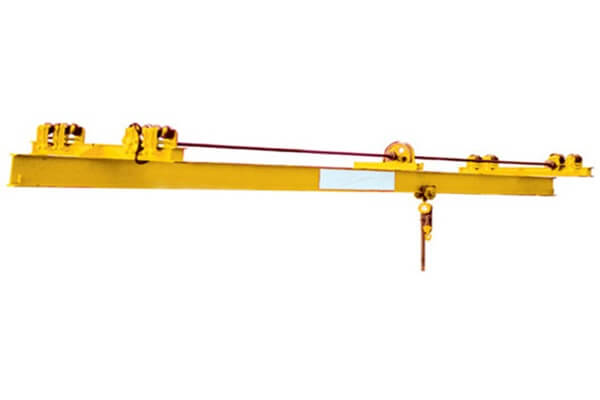

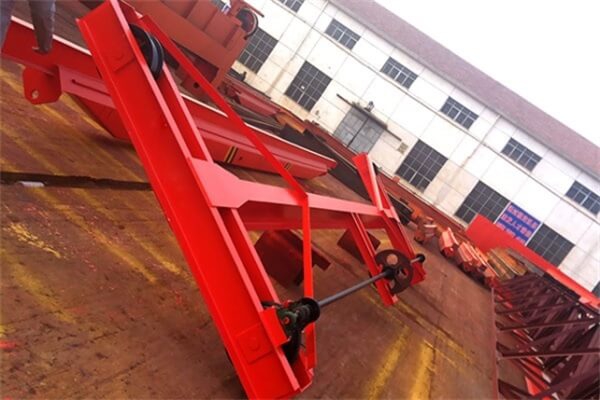

Product Display
