Gantry crane for casting yard

Gantry crane for casting yard

The precasting yard gantry crane is a special gantry crane which usually used to loading, unloding, hoisting or transporting the precast beam in the casting yard.

Product Overview

The precasting yard gantry crane is a special gantry crane which usually used to loading, unloading, hoisting or transporting the precast beam in the casting yard. It consist of four main parts, namely, the bridge structure, the crane traveling mechanism, the trolly and the electric equipment.

It's main girder design is used more triangle truss structure, bent steel welding employment with lower chord board, add with channel steel weiding core board, abdominal pole adopts double girder stanra, joint with pin shaft link. Teams legs used steel structure, steel pipe with legs between stabilizer rod connected into triangle stable structure.

All movements of the crane are controlled in the operating room. Crane has two conductive forms, Cable and Sliding contact line. When buy this crane, any form will be fine, and also tell us the crane's working enviroment and Power source.

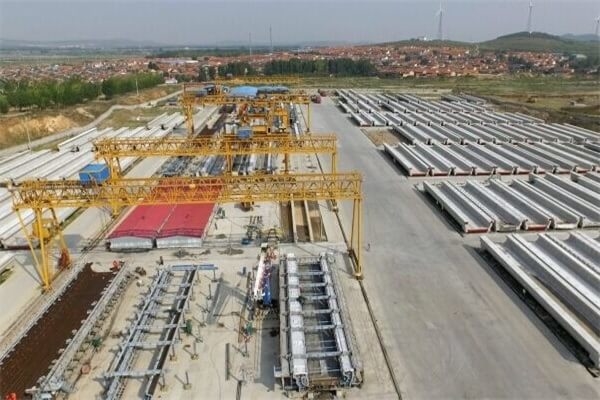

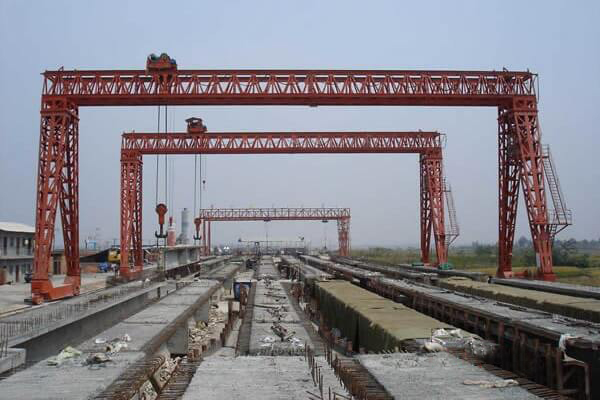

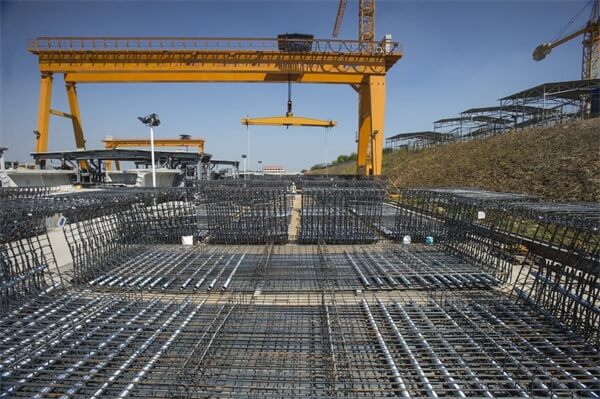

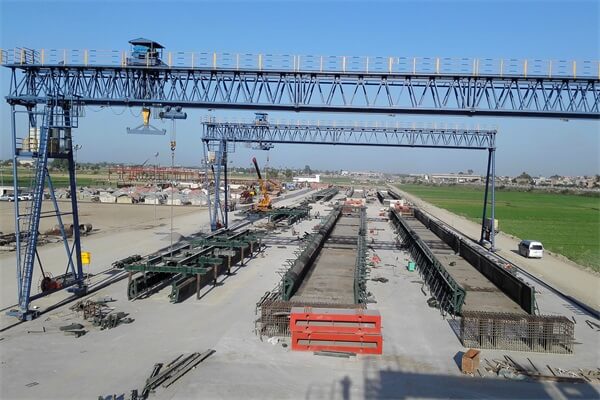

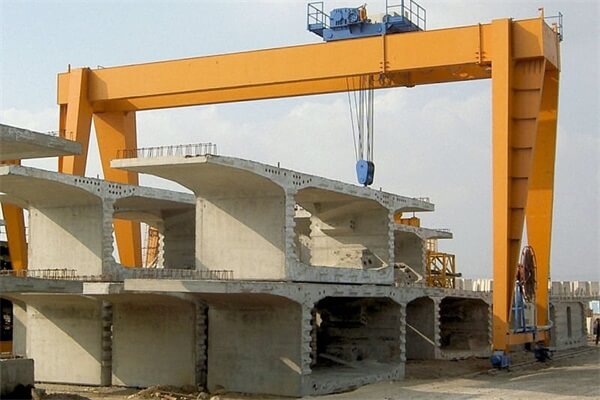

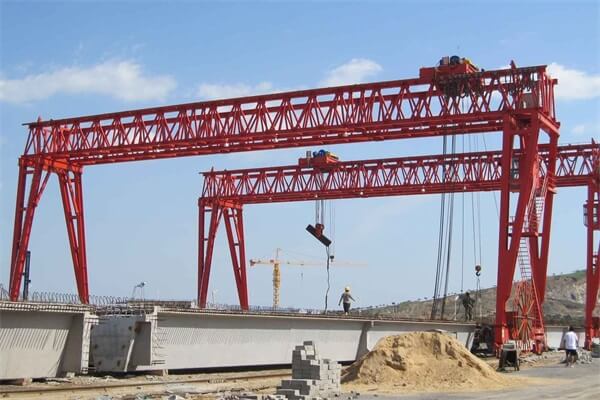

Product Display
