Rail Mounted Container Gantry Crane

Rail Mounted Container Gantry Crane

Rail Mounted Container Gantry Crane (RMG) is a professional container loading and unloading equipment, container gantry cranes move on the designed rail and equipped with automatic container spreaders.

Product Overview

Rail mounted container gantry crane is mainly consists of the steel structure, lifting mechanism, micro-transfer mechanism, spreader anti-sway system, crane travelling mechanism, container spreaders, electrical equipment, and other necessary auxiliary equipments.

Rail mounted container gantry crane is a professional container loading and unloading equipment, container gantry cranes move on the designed rail and equipped with automatic container spreaders.

Rail mounted container gantry crane mainly used on container yard, container depot for container handling, also container gantry cranes can be used for small vessels in inland water container loading port , the hook under automatic spreader handles the loading and unloading of of bulk goods, container cranes have the advantages of high efficiency, and high usability , lower cost in maintenance and daily operation ,easy to control etc.

Product Specifications

Lifting Capacity
t
Under Sling or Spreader for 50ton
Span
m
30
Lfiting Height
m
16
Working System
A6
Load and Unload
20', 40', Container
Speed
Hoisting
m/min
0-10
Trolley Travelling
50-80
Crane Travelling
30-50
Motor
Hoisting
Kw
YZP280M-8/2*55
Trolley Travelling
YZP225M-6/2*22
Crane Travelling
YZP180L-6/4*15
Weight
Trolley
t
52
Total Weight
253
Max. Wheel Load
KN
260
Steel Track Recommended
P43
Power Supply
3P  AC  50Hz   380V

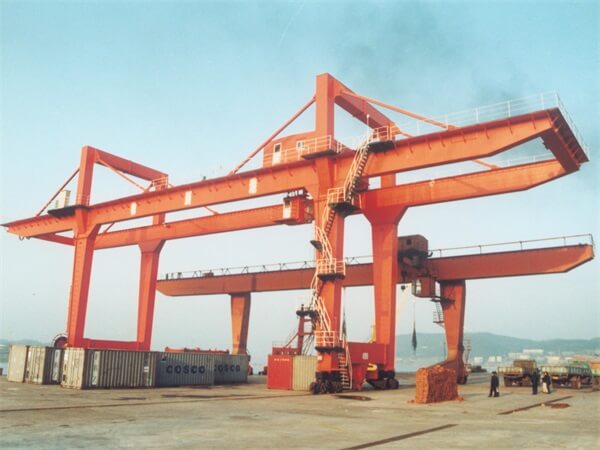

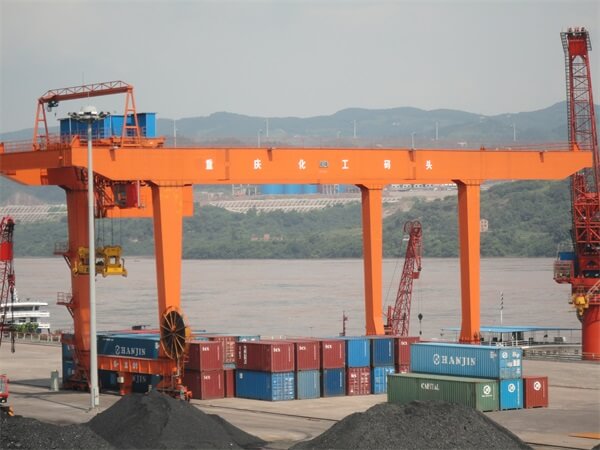

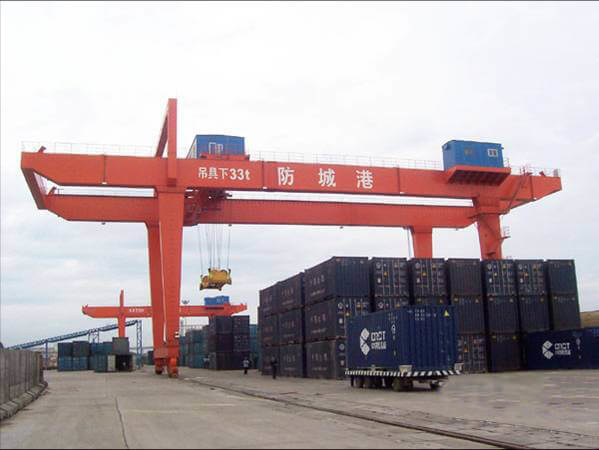

Product Display
