Single girder gantry crane is a kind of outdoor cranes equipped with CD/MD type electric hoists and widely used indoor and outdoor such as workshop, warehouse, store yard, railway and so on.

Product Overview

Single girder gantry crane is a kind of outdoor cranes equipped with CD/MD type electric hoists and widely used indoor and outdoor such as workshop, warehouse, store yard, railway and so on.

Single girder gantry crane is mainly consisted of gantry frame, that is main single girder, legs, bottom end beams, lifting mechanism, travelling mechanism, and electrical control. It can be designed with two hanging arms, one hanging arm or no-hanging arm according to client's lifting requirements and application environment.

About the main beam and support leg, there are two types: box type and truss type, box type is good techniques and easy fabrication, truss type is light in dead weight and strong in wind resistance. The complete machine features light dead weight, simple structure and easy installation and maintenance and widely used.

There are three control ways for your chosen: ground handle, wireless remote control and cab.

Product Specifications

Capacity
T 3
Span m 12 16 20 24
Lifting height m 6/9
Lifting speed m/min 8 0.8/8
Trolley travelling speed m/min 20
Crane travelling speed m/min 20
Max. Wheel load KN 37/42 40/46 44/50 48/54
Rail recommended Model P34 P38
Total weight t 7.4/8.7 8.6/9.9 11.3/12.6 13/14.3
Crane base distance B1 5000/6000 6000/7000
Crane width B2 5400/6400 6500/7500
Capacity T 5
Span m 12 16 20 24 30
Lifting height m 6/9 9
Lifting speed m/min 8 0.8/8
Trolley travelling speed m/min 20
Crane travelling speed m/min 20
Max. Wheel load KN 54/59 62/67 70/75 78/83 96
Rail recommended Model P24 P38
Total weight t 8.4/9.8 9.6/11.2 13.6/15.2 18.3/20.4
Crane base distance B1 5500/6500 6500/7500
Crane width B2 6000/7000 7100/8100
Capacity T 10
Span m 12 16 20 24 30
Lifting height m 6/9 9
Lifting speed m/min 7 0.7/7
Trolley travelling speed m/min 20
Crane travelling speed m/min 20
Max. Wheel load KN 97/102 105/110 113/118 121/126 149
Rail recommended Model P38 P43
Total weight t 14.8/16.1 16.7/18.7 19.6/21.6 24.4/26.6 30.1
Crane base distance B1 5500/6500 6500/7500
Crane width B2 6000/7100 7100/8100
Capacity T 16
Span m 12 16 20 24 30
Lifting height m 6/9 9
Lifting speed m/min 3.5 0.35/3.5
Trolley travelling speed m/min 20
Crane travelling speed m/min 20
Max. Wheel load KN 143/150 152/159 165/174 169/176 190
Rail recommended Model P38 P43
Total weight t 15.2/18.2 18.9/21.9 21.8/24.8 27.0/30.0 32.8
Crane base distance B1 6500/7000 7500/8500 8500
Crane width B2 7000/7500 8200/9200 9200
Capacity T 20
Span m 12 16 20 24 30
Lifting height m 6/9 9
Lifting speed m/min 3.5 0.35/3.5
Trolley travelling speed m/min 20
Crane travelling speed m/min 20
Max. Wheel load KN 198/206 218/226 232/240 265/273 302/310
Rail recommended Model P38 P43
Total weight t 16.8/17.5 21.6/22.4 25.0/25.9 31.0/32.1 38.0/39.2
Crane base distance B1 6500/7000 7500/8500
Crane width B2 7000/7500 8200/9200

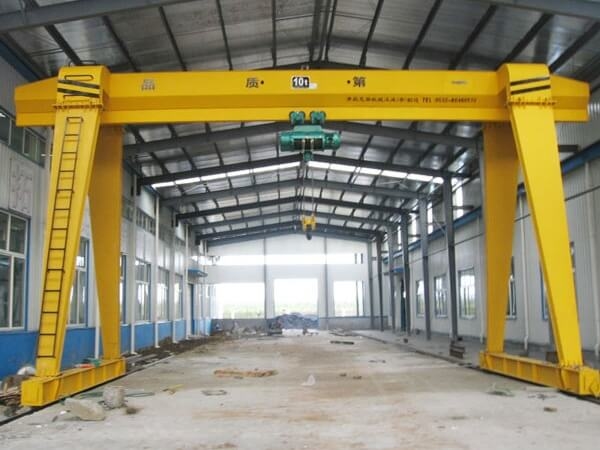

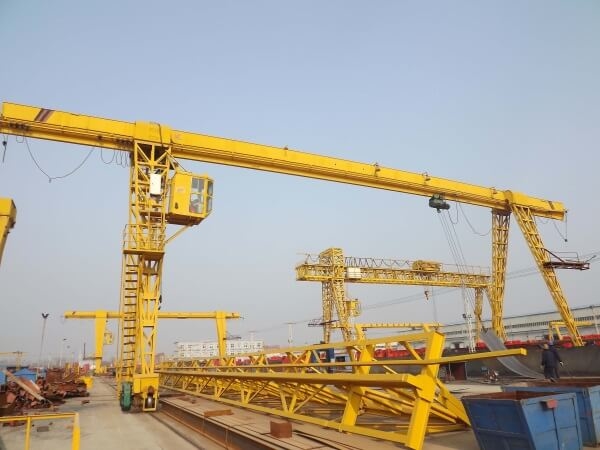

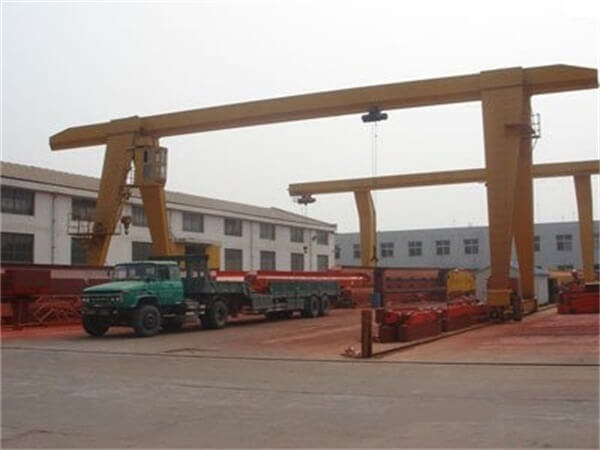

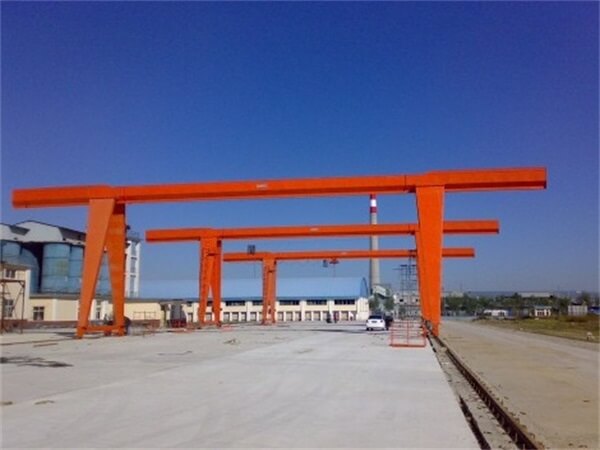

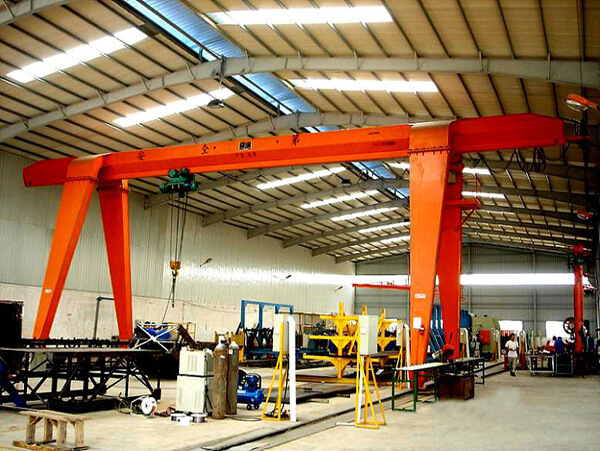

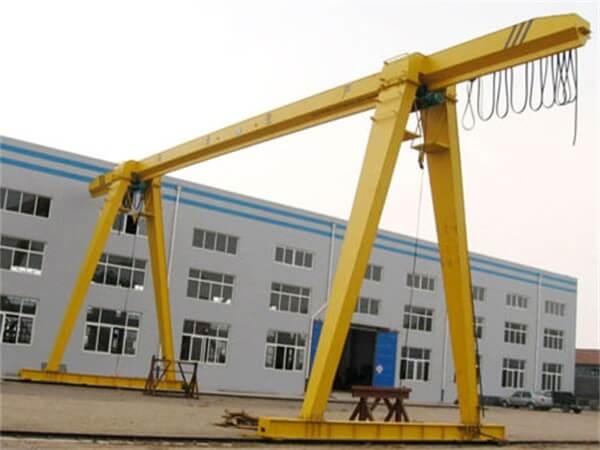

Product Display
