Explosion-proof Electric Hoist

Explosion-proof Electric Hoist

Lifting Capacity: 1~32t

Lifting Height: 6~48m

Working Class: M3

Ambient temp~: -25°C ~40°C



Product Overview

Explosion-proof Wire Rope Electric Hoist is a light lifting equipment. Its structure is more reasonable and its assembly is more convenient, and it's propery is more superior. Compact structure, light weight, small volume, large lifting capacity, improve labor condition.

This range of motors, whose explosive marking is dI, dIIAT4, dIIBT4 and dIICT4, can respectively used in places where there are flammable gas and the mixture of the vapor and air in the coal mining and factory where the protection degree is IIA,IIB or IIC and temperature is T1-T4.

Product Specifications

Capacity T 0.5 1
Lifting height m 6 9 12 6 9 12 18 24 30
Lifting speed m/min 8(0.8/8)
Trolley travelling speed m/min 20/30
Working duty / M4 M4
Wire rope diameter / 4.8 7.4
Min. curvature radius m 1.5 1.5 2 3 4
Lifting motor kw 0.8(0.4/0.8) 1.5(0.4/1.5)
Travelling motor kw 0.2 0.2
Rail Model 16-28b
CD1 Total weight kg 171 175 180 187 195 222 238 254 270
MD1 Total weight 238 242 247 264 274 299 315 331 347
Lifting height m 6 9 12 6 9 12 18 24 30
Travelling side width B 884 884
Hoist length L 616 688 760 758 856 954 1150 1346 1542
Hook upper limitation H 650 667 767
Capacity T 2 3
Lifting height m 6 9 12 18 24 30 6 9 12 18 24 30
Lifting speed m/min 8(0.8/8) 8(0.8/8)
Trolley travelling speed m/min 20/30
Working duty / M4 M4
Wire rope diameter / 11 13
Min. curvature radius m 2 2.5 3 4 2 2.5 3 4
Lifting motor kw 3.0(0.4/3.0) 4.5(0.4/4.5)
Travelling motor kw 0.4 0.4
Rail Model 20a-28b
CD1 Total weight kg 271 282 335 359 382 393 331 347 404 440 470 501
MD1Total weight 356 367 420 444 461 488 411 427 484 520 550 581
Lifting height m 6 9 12 18 24 30 6 9 12 18 24 30
Travelling side width B 930
Hoist length L 820 920 1020 1220 1420 1620 932 1035 1138 1344 1550 1756
Hook upper limitation H 840 950 954 1058
Capacity T 5 10
Lifting height m 6 9 12 18 24 30 9 12 18 24 30
Lifting speed m/min 8(0.8/8) 7(0.7/7)
Trolley travelling speed m/min 20/30
Working duty / M4 M4
Wire rope diameter / 15
Min. curvature radius m 2.5 3 4 4.5 6 3.5 4 6 7.5 9
Lifting motor kw 7.5(0.8/7.5) 13(2.2/13)
Travelling motor kw 0.8 0.8*2
Rail Model 25a-45a 32b-45a
CD1 Total weight kg 517 575 677 726 766 806 1168 1218 1329 1421 1531
MD1 Total weight 608 632 754 803 843 883 1224 1274 1385 1486 1587
Lifting height m 6 9 12 18 24 30 9 12 18 24 30
Travelling side width B 1055
Hoist length L 1047 1157 1257 1467 1677 1887 1602 1783 2145 2507 2869
Hook upper limitation H 1120 1183 1350
Capacity T 16
Lifting height m 9 12 18 24 30
Lifting speed m/min 3.5(0.35/3.5)
Trolley travelling speed m/min 18
Working duty / M4
Wire rope diameter / 17.5
Min. curvature radius m 3.5 4 6 8 11
Lifting motor kw 13(2.2/13)
Travelling motor kw 0.8*2
Rail Model 32b-63c
CD1 Total weight kg 860 1080 1520 1940 2375
MD1 Total weight 1250 1303 1406 1583 1683
Lifting height m 9 12 18 24 30
Travelling side width B 1055
Hoist length L 1872 2092 2532 2952 3387
Hook upper limitation H 2100
Capacity T 20
Lifting height m 9 12 18 24 9 12 15 18 21 24 27 30
Lifting speed m/min 3.3(0.33/3.3) 4.2(0.42/4.2)
Trolley travelling speed m/min 14 14
Working duty / M4 M4
Wire rope diameter / 21.5
Min. curvature radius m 3 4 5.5 7.6 3 3.5 4 5 6 7 8 9
Lifting motor kw 18.5(2.2/18.5 4 poles )
Travelling motor kw 0.8*2
Rail Model 56a-63c
Total weight kg 2650 2820 3000 3450 2038 2127 2225 2369 2440 2520 2644 2727
Lifting height m 9 12 18 24 9 12 15 18 21 24 27 30
Travelling side width B 306~320 288~310
Hoist length L 1875 2108 2574 3040 1747 1942 2153 2364 2575 2786 2997 3208
Hook upper limitation H 2500(1300) 2300(1300)
Capacity T 32
Lifting height m 9 12 16 20 24
Lifting speed m/min 3(0.3/3)
Trolley travelling speed m/min 16
Working duty / M4
Wire rope diameter / 26
Min. curvature radius m 3.5 4.5 5.8 7.2 8.7
Lifting motor kw 18.5(2.2/18.5)
Travelling motor kw 1.5×2
Rail Model >63c
Total weight kg 3085 3150 3470 3695 3900
Lifting height m 9 12 16 20 24
Travelling side width B 320
Hoist length L 1913 2127 2412 2697 2982
Hook upper limitation H 2500(1500)

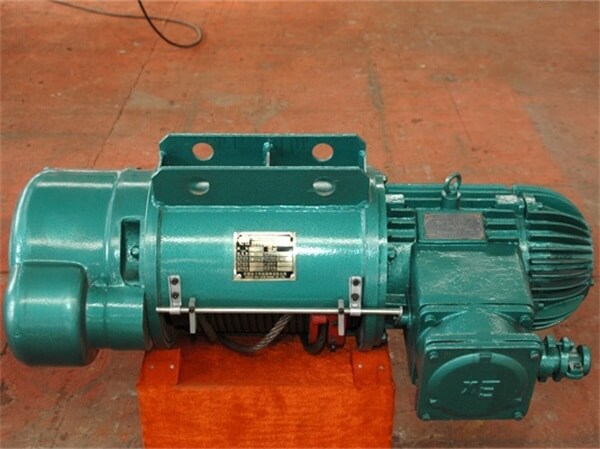

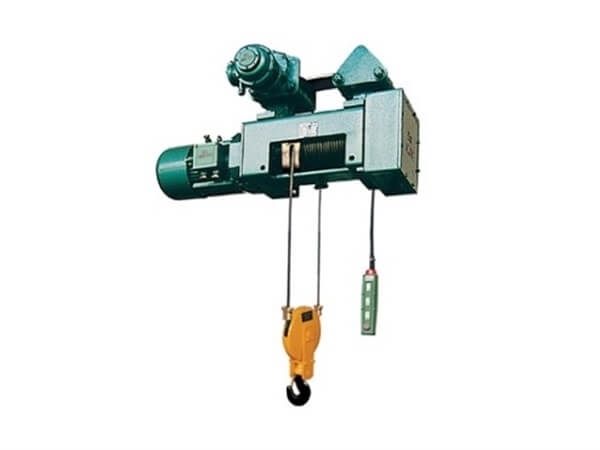

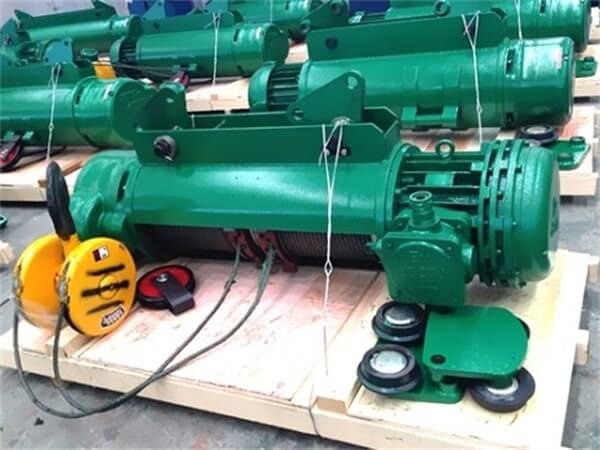

Product Display
