Underslung MSS

Underslung Movable Scaffolding System

Movable Scaffolding System is a quick, reliable and economical solution for modern bridge construction.

Underslung MSS is very useful when the bridge designed with monotype of pier, which is normally the case when the bridge is crossing river.

Product Overview

Movable Scaffolding System is a quick, reliable and economical solution for modern bridge construction. It's generally used in cast in-situ bridge construction. Both the overhead and the underslung MSS consist of a self supporting structure combined with a project specific exterior formwork.

Underslung MSS has all the advantages similar to its over head model, except that it gives additional users friendly feature by providing a clear space above the formwork. The bearing system of main girder below the bridge deck, external formwork support system on bearing main girder, the girders system through the leg support on the bearing, and use the high strength fine rolled steel bar to anchor the legs to the piers.

The design of our advanced equipment has been improved and optimized over the years, the system is light weight, easy to assemble, practical in design, supported by internationally known hydraulic and cranage systems, and most importantly, efficient in operation.

Product Features

When the longitudinal hole is over, the external formwork is opened with the main beam or separately, to avoid the pier.

The legs can be reloaded on their own or using the auxiliary crane.

The external formwork system moves along with the main beam system.

The underslung MSS occupies a big clearance under a bridge, requirements the height of the bridge pier is more than 4 meters, which is more adaptive to the high pier.

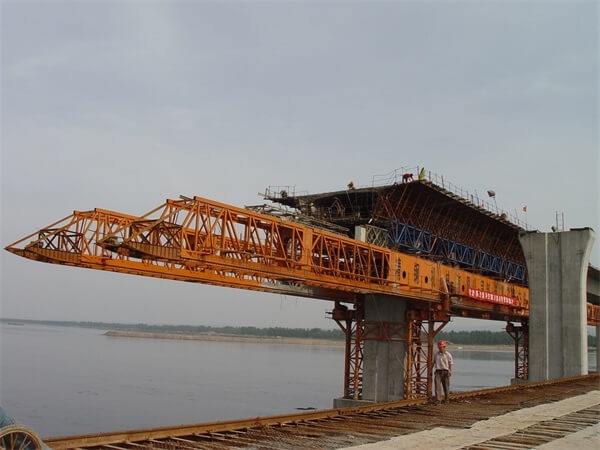

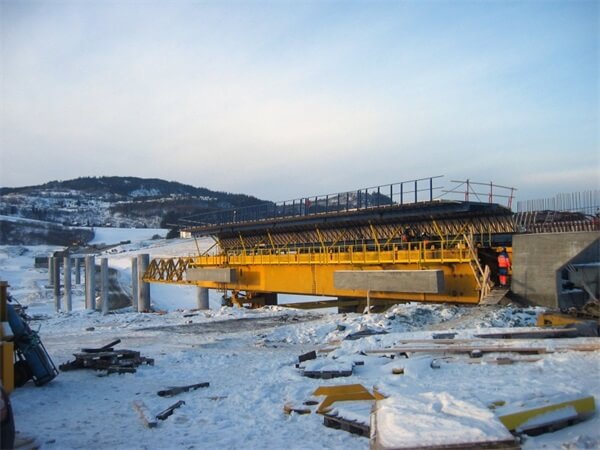

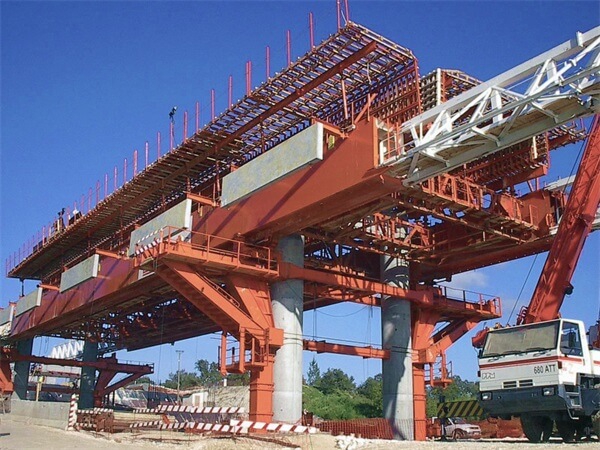

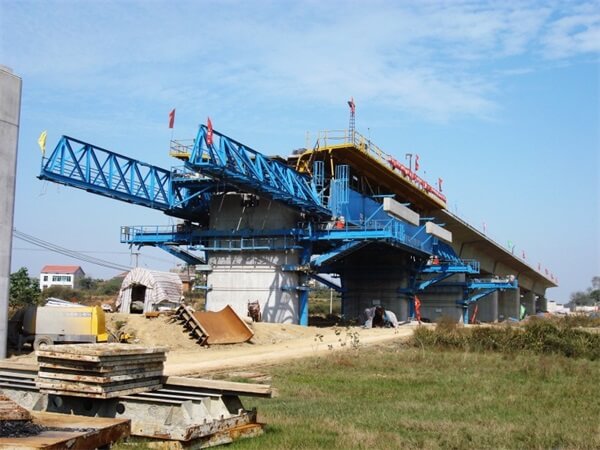

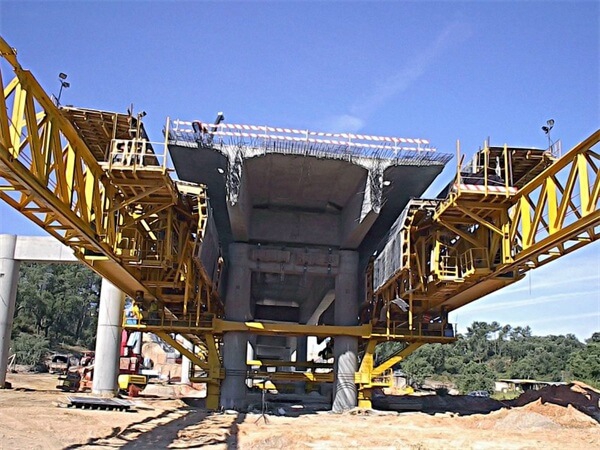

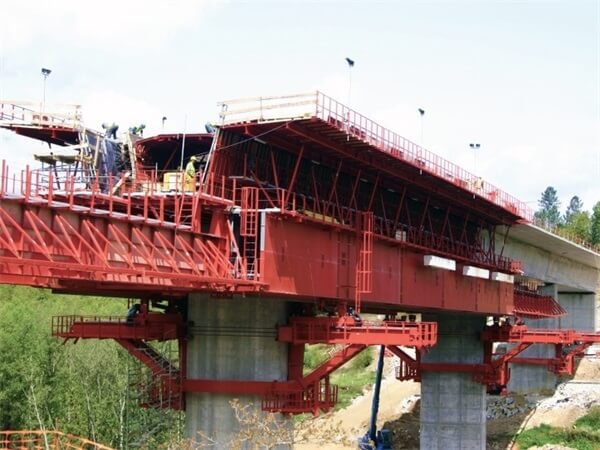

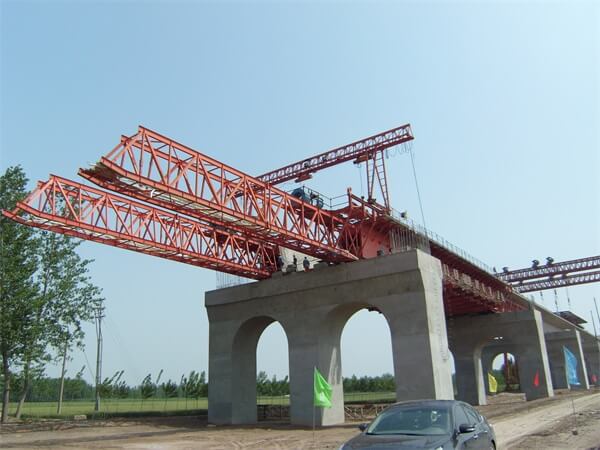

Product Display

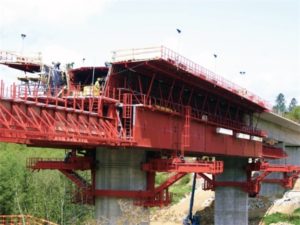

Related Projects
