Overhead Crane with Electromagnet

Overhead Crane with Electromagnet

Lifting Capacity: 5~20t

Span: 10.5~31.5 m

Lifting Height: 6~18 m

Working Class: A5, A6

Product Overview

The Overhead Crane with Electromagnet is consisted with box shape bridge frame, crane travelling mechanism, trolley, electric equipment and electromagnetic plate. There are pave the rail for the trolley move on the main girder. The operation is cabin operating, and have rain-proof equipment when in outside.

The Electromagnetic Overhead Crane equipped with accessible electromagnetic plate, the lifting capacity includes plate’s weight. It is applied in metallurgy factory or outdoor place, where have fixed span and heavy work, to load and transport electromagnetic black metal materials(as steel ingot, merchant steel, pig iron ). Some stores also use it to handling materials, pieces of iron and scrap iron, scrap steel and so on.

Product Specifications

Lifting Capacity
t
5t
10t
16t
Working Duty
/
A6
Span
m
10.5~~31.5
10.5~~31.5
10.5~~31.5
Max. Lifting Height
m
16
16
16
Speed
Lifting
m/min
15.6
13
13
Traveling of Trolley
39.5
43.8
44.5
Traveling of Crane
92.7/93.7
92.7/93.7/86.4
76/89
motor
Lifting
Model
YZR180L-6
YZR225M1-6
YZR250M1-6
KW
15
30
37
Traveling of Trolley
Model
YZR112M-6
YZR132M1-6
YZR132M2-6
KW
1.5
2.2
3.7
Traveling of Crane
Model
YZR160M1-6
YZR160M2-6
YZR160M1-6
YZR160M2-6
YZR160M2-6
YZR160L-6
KW
2×5.5 KW
2×7.5 KW
2×5.5 KW
2×7.5 KW
2×7.5 KW
2×11 KW
Electromagnetic disk
Model
/
MW1-6
MW1-16
MW1-16
MW1-16
Attracting weight
kg
4540
3330
8330
14330
Dead weight
460
1670
1670
1670
Diameter
mm
776
1180
1180
1180
Steel track recommended
43Kg/m
Power Supply
Three-phase A.C. 380V, 50Hz

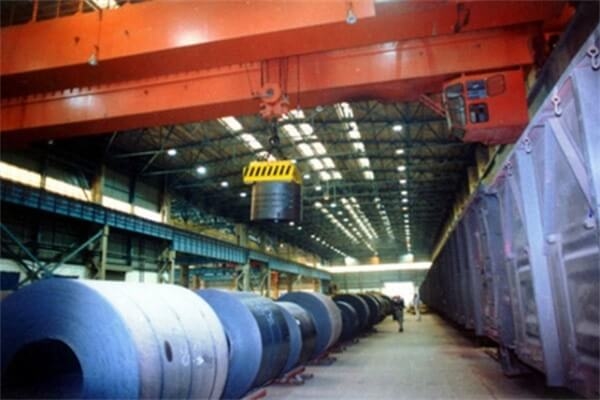

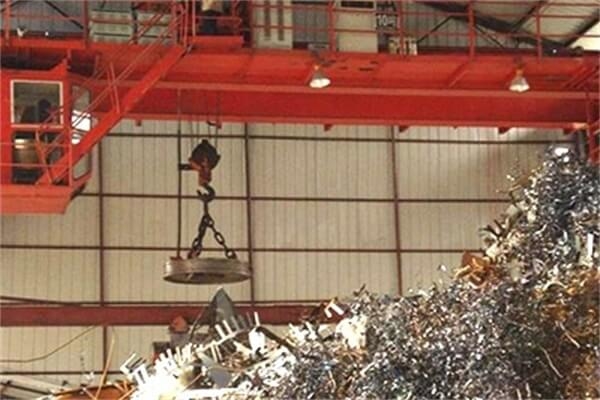

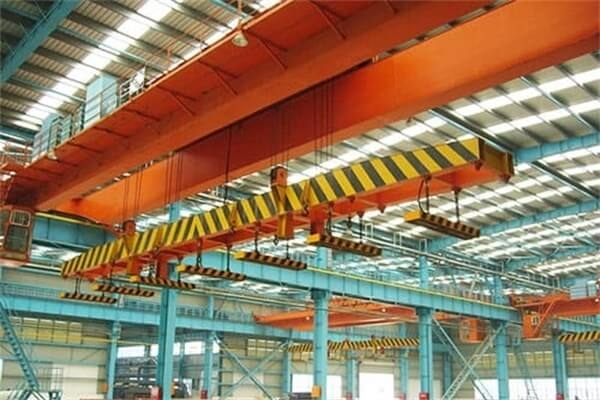

Product Display
