Semi Gantry Crane

Semi Gantry Crane

Semi gantry crane is a small or middle scale gantry crane with one side of crane girder supported by one unilateral leg which can travel on the ground track, and the other side supported on the bracket track, which could save cost and space of the factory.

Product Overview

Semi gantry crane is a small or middle scale gantry crane with one side of crane girder supported by one unilateral leg which can travel on the ground track, and the other side supported on the bracket track, which could save cost and space of the factory.

The mechanical structure of semi gantry crane is mainly consisted of crane bridge, travelling mechanism, trolley part, and electrical part, etc.

There are tow types semi gantry crane:

The single girder semi gantry crane is a general purpose light crane used in workshop or outdoors. The leg height of this single girder semi-gantry crane can be different according to the engineering needs on the construction field. The single girder semi gantry crane has the features of simple structure, easy installation, light weight, good wind resistance. The Main girder is mostly bias rail box type structure. Compared with the double girder gantry crane, the lifting capacity is smaller,it can be remote control and floor control.

The double girder semi gantry crane is combining the advantages of the full gantry crane and overhead crane. It is widely applied to do loading and unloading work in indoor or outdoor.

Product Specifications

Capacity
T 2
Span m 10 12 16 20
Lifting height m 6
Lifting speed m/min 8 or 8/0.8
Trolley travelling speed m/min 20
Crane travelling speed m/min Ground 20
Controling Room 20/30
Crane total weight Kg 3250 3550 4050 5350
Max. Wheel load KN 14 19 27 35
Rail recommended Model P24
Total motor power kw 4.6 6
Main dimension (mm) Span(m) 10 12 16 20
Crane base distance B1 3300
Crane width B3 2000 2500 3000
Capacity T 3
Span m 10 12 16 20
Lifting height m 6
Lifting speed m/min 8 or 8/0.8
Trolley travelling speed m/min 20
Crane travelling speed m/min Ground 20
Controling Room 20/30
Crane total weight Kg 3500 3850 4550 6150
Max. Wheel load KN 28 32 35 39
Rail recommended Model P24
Total motor power kw 6.5 7.9
Main dimension (mm) Span(m) 10 12 16 20
Crane base distance B1 3300
Crane width B3 2000 2500 3000
Capacity T 5
Span m 10 12 16 20
Lifting height m 6
Lifting speed m/min 8 or 8/0.8
Trolley travelling speed m/min 20
Crane travelling speed m/min Ground 20
Controling Room   20/30
Crane total weight Kg 4300 4750 5500 6900
Max. Wheel load KN 37/44 40/47 43/50 46/53
Rail recommended Model P24
Total motor power kw 9.9 11.3
Main dimension (mm) Span(m) 10 12 16 20
Crane base distance B1 3500
Crane width B3 2000 2500 3000
Capacity T 10
Span m 10 12 16 20
Lifting height m 6
Lifting speed m/min 7 or 7/0.7
Trolley travelling speed m/min 20
Crane travelling speed m/min Ground 20
Controling Room   20/30
Crane total weight Kg 6600 7500 8350 10650
Max. Wheel load KN 78 85 94 103
Rail recommended Model P38
Total motor power kw 13 14.4
Main dimension (mm) Span(m) 10 12 16 20
Crane base distance B1 3700
Crane width B3 2000 2500 3000

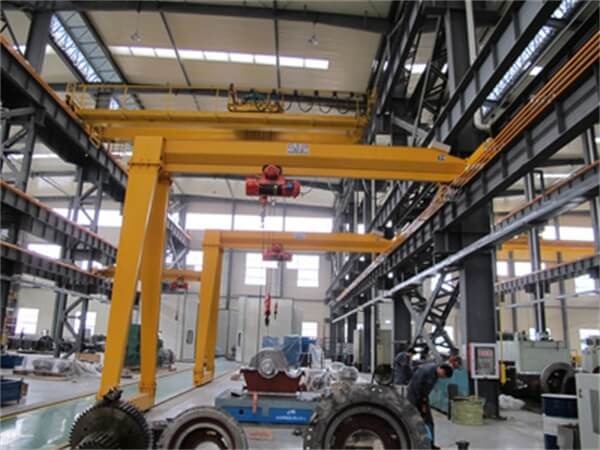

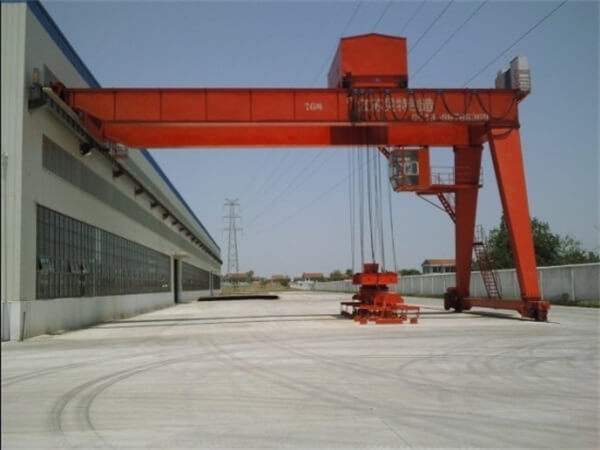

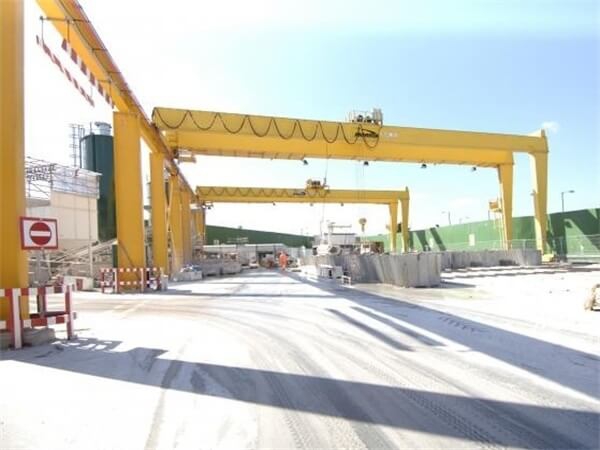

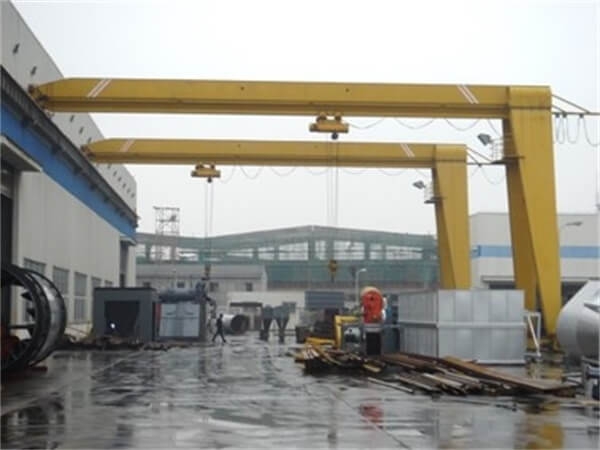

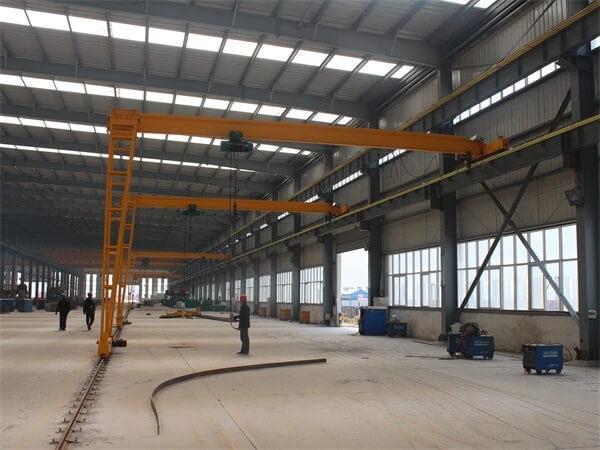

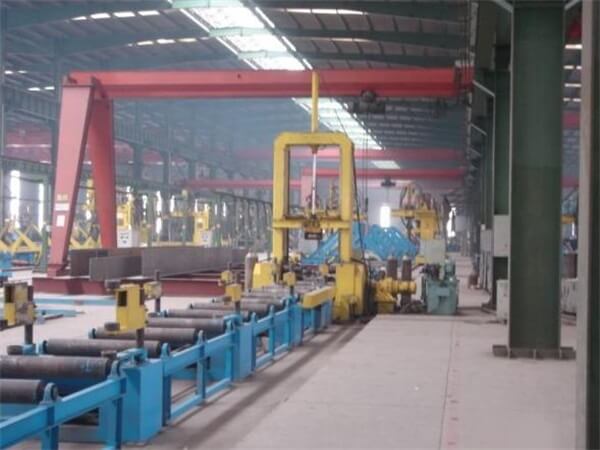

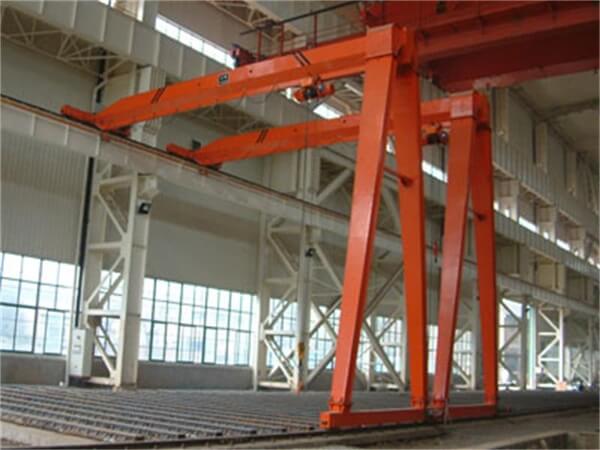

Product Display
