Project – Launching Gantry

170T 48M Segmental Launching Girder Method

Launching girder method is one very popular method in the bridge construction with launching gantry. Shenghua Heavy Crane Group provide full span launching gantry, overhead segmental launching gantry and underslung segmental launching gantry, etc.

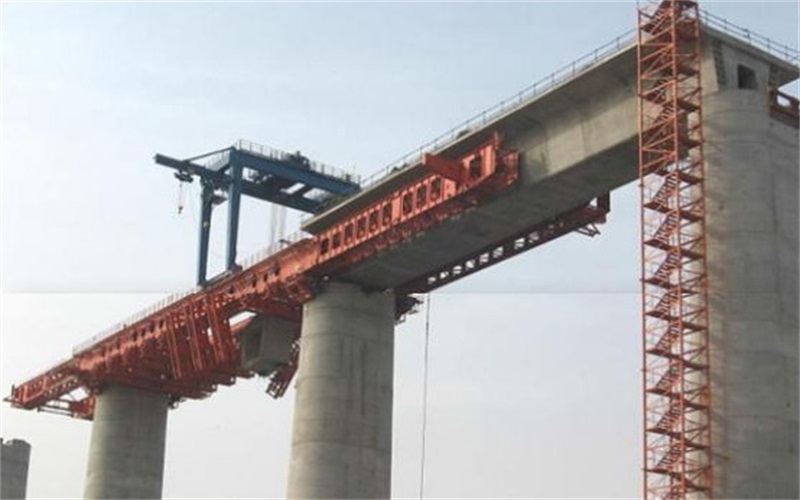

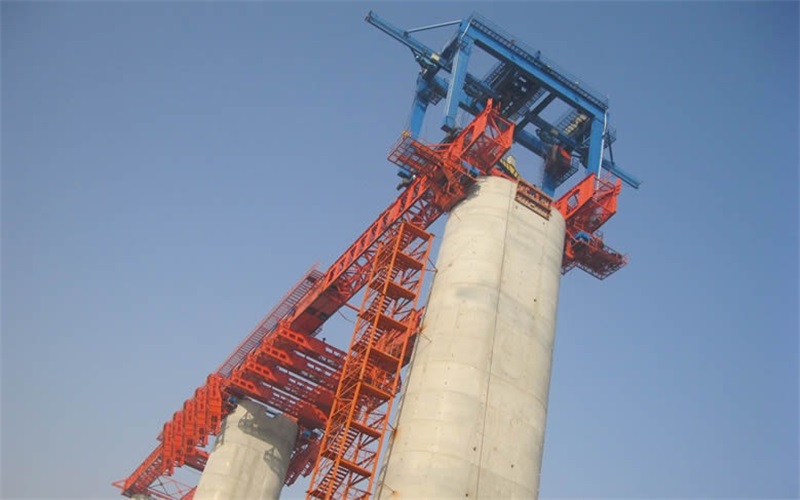

In the year 2011, our dsigned and manufactured 170T 48M Segmental Launching Gantry had provide in Jinshan  Yellow River Railway Bridge to CREC SHANGHAI CIVIL ENGINEERING.

Details:

Client: CREC SHANGHAI CIVIL ENGINEERING

Project: Jinshan  Yellow River Railway Bridge

Year of Manufacture:2011

Number of Sets: 1

Characteristics:

Max span length:48m

Winch lifting capacity:170 ton

Max suspension weight:1700 ton

Total Length of the equipment:168m

 Accommodation curve:≥2500m

Max transversal slope:≤2.5%

Max longitudinal slope:≤3.5%

Speed:

Lifting speed with load:0~2m/min

Lifting speed Without Load:0~5m/min

Travelling:0~15m/min
