Project – Movable Scaffolding System

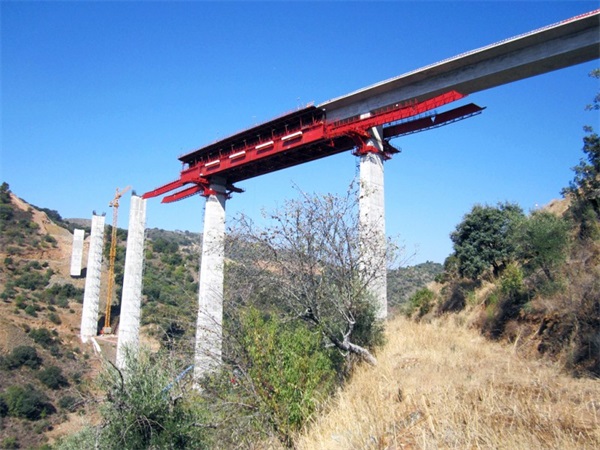

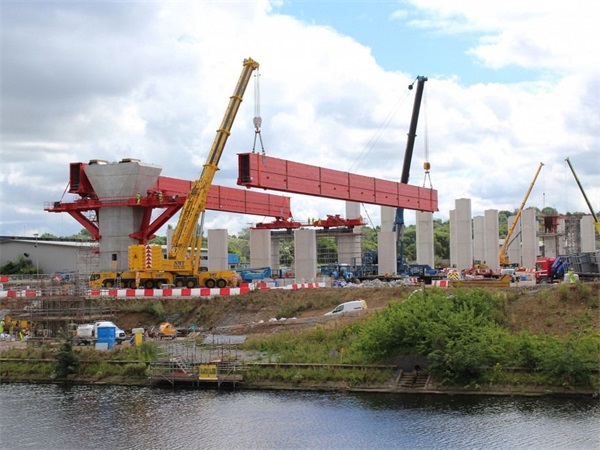

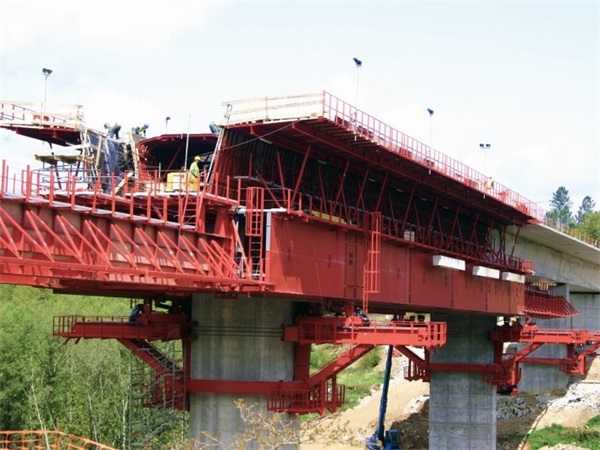

1600T Underslung Movable Scaffolding System

In the bridge construction, when we choice the cast-in-site method, one Movable Scaffolding System will be your best choice. Shenghua Heavy Crane Group had provide 2 sets Underslung Movable Scaffolding System for THE 4th CONSTRUCTION COMPANY OF  CRCC 15th BUREAU, in the year 2009.

MSS could be overhead and underslung type accoding to the construction site situatiion, and both consist of a self-supporting steel structure, this structure combined with a project specific exterior formwork.

And hydraulic systems are designed to move the large machine. It can be widely used in the construction of various bridge, such as highway, LRT, MRT etc.





Details:

Client: THE 4th CONSTRUCTION COMPANY OF  CRCC 15th BUREAU

Year of Manufacture: 2009

Construction method: Cast-in-situ method

Number of Sets: 2

Characteristics:

Max span length: ≤48m

Winch lifting capacity: 1600 tons

Max transversal slope: ≤3.5%

Max longitudinal slope: ≤2.5%

Adaptive radius ≥2000m
