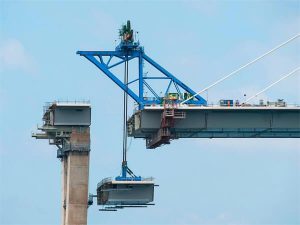

Project – Segment Launching Gantry

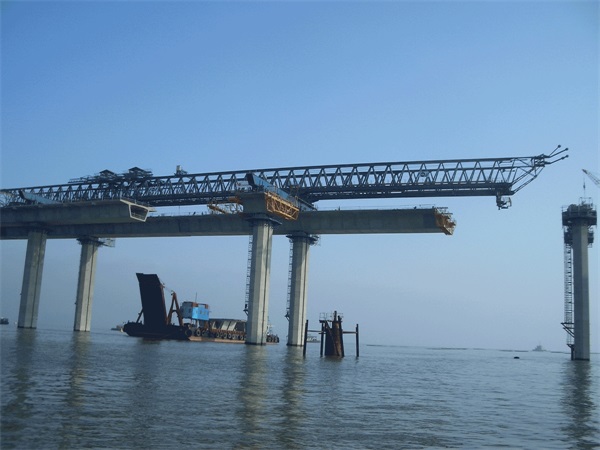

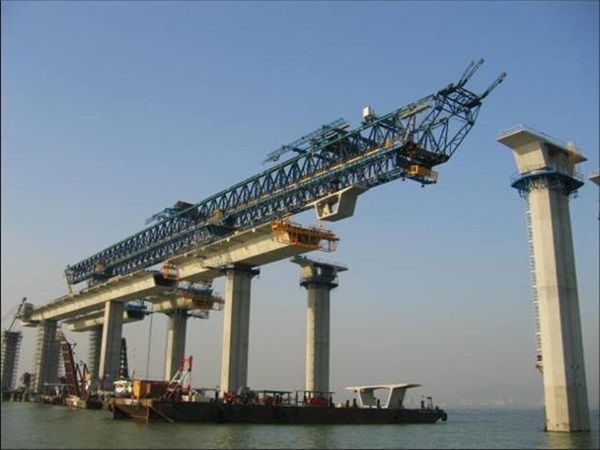

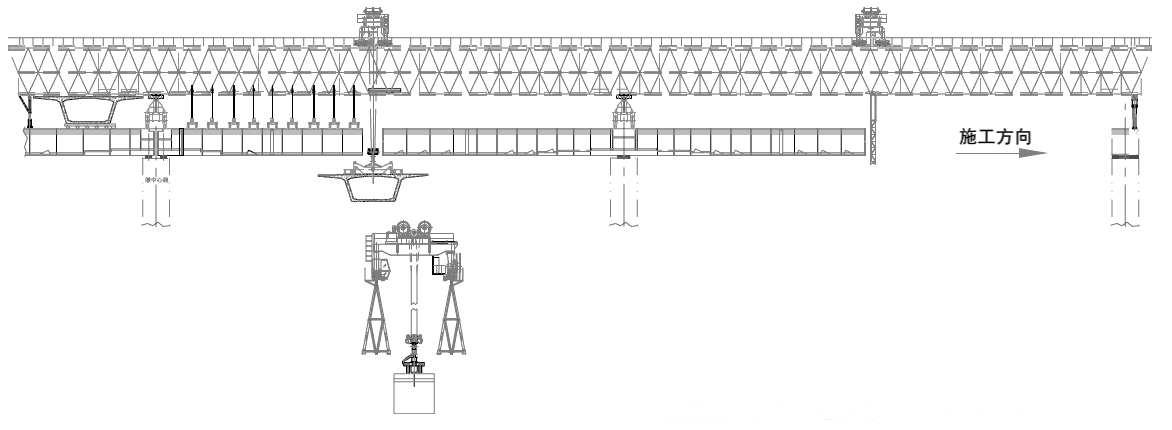

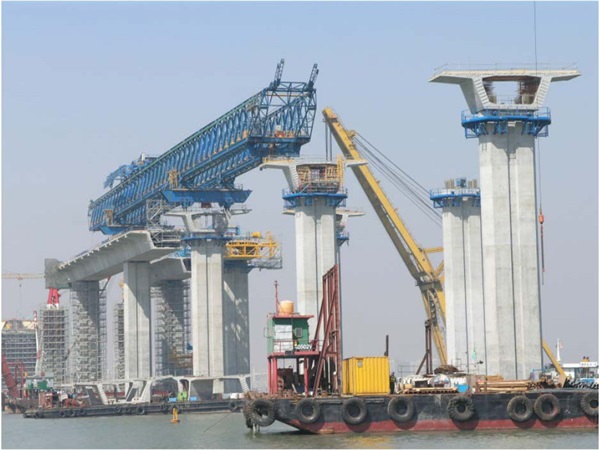

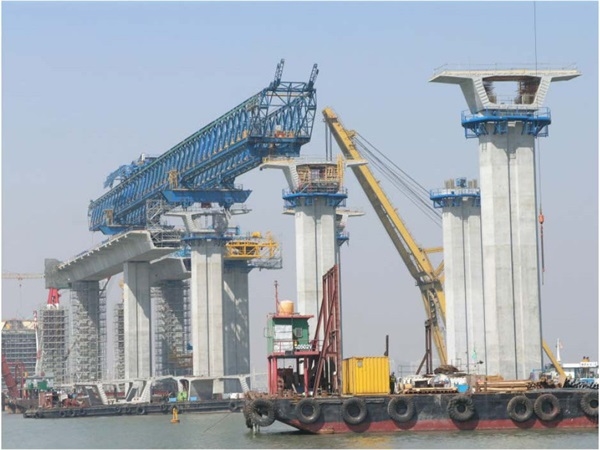

120T 42M Launching Girder Design for Nanhuwan Bridge

This launching girder design by Shenghua Heavy Crane Group for China Harbour Engineering Company(CHEC), it was one very successful experience.

Details:

Client: China Harbour Engineering Company(CHEC)

Project: Nanhuwan Bridge

Year of Manufacture:2013

Number of Pieces: 1

Construction method: Balanced Cantilever Method

Characteristics:

Max span length: 42m

Winch lifting capacity: 120ton

 Accommodation curve: ≥2500m

Max transversal slope: ≤3%

Max longitudinal slope: ≤4.5%

Speed:

Lifting speed with load: 0~2m/min

Lifting speed Without Load: 0~5m/min

Travelling: 0~5m/min
